Nomenclature
Mathematics Dynamics Energy-Power Stress/Strain



Symbol Description Units
A Cross Section Area m2
a Acceleration m/sec2
D Diameter m 2
e Energy Joule (N.m)
e Strain -
E Young's Modulus N/m2
F Force N
G Shear Modulus .. Modulus Of Rigity N/m2
I Second Moment of Area of a Section about its Neutral Axis m4
I Mass Moment of Inertia of a body about its axis of Rotation kg.m2
J Polar Moment of Inertia m4
J Mass Moment of Inertia of a body about its axis of Rotation kg.m2
m Mass kg
M Moment N.m
p Tensile/Compressive Stress N/m2
P Pressure N/m2
q Shear Stress N/m2
R Radius m
s Distance m
t Time sec
t Thickness m
T Torque N.m
v Velocity m / s
W Work Done Joule (N.m)
W Beam Load N
w Beam Distributed load N /m
x Distance x direction m
y Distance y direction m
α Angular Acceleration s-2
ε Shear Strain Radian
θ Angle Radian
ν Poisson's Ratio -
π Circumference/ Diameter 3.14159 (approx)
σ Stress N / m2
τ Shear Stress N/m2
ω Angular Velocity sec-1

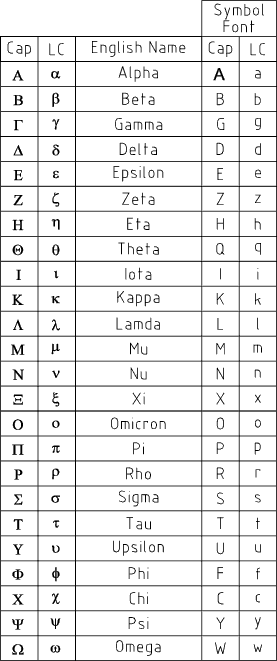

Greek alphabet
may be obtained with symbol Font

This Page is being developed
