This page includes notes on design of timber structures and structural components in accordance with the relevant Eurocode EC 5 (BS EN 1995-1-1: 2004).    The notes are outline in nature suitable for enabling basic calculations.  For detailed design it is necessary to refer to the actual standard and all of the associated standards.

Timber construction design to EuroCode 5 is based on limit state design with the two principal catergories being ultimate and seriviceability states.

Ultimate limit state (ULS) = States associated with collapse or similar structural failure.
Serviceability Limit state(SLS) = State such that the structure remains functional for its intended use subject to routine loading.

The durability limit state also needs to be considered .    This relates to the risk of timber decay due to fungal or insect attack as well as the risk of corrosion of metal fasteners and connections.

The requirements of limit state design are identified in Eurocodes Introduction.

The separate catergories of ULS include design for Equilibrium (EQU) = loss of equilibrium of the structure, Strength (STR) Internal failure or excessive deformation of the structure or structural member,  Geology (GEO) = failure due to excessive deformation of the ground, and Fatigue (FAT) = fatigue failure of the structure or structural members..    The notes on this page relate primarily to the STR Ulitmate limit state category.

Included below are links to timber information pages which are useful but which are not necessarily in accordance witht the Eurocodes

Almost as important as the design of the timber members is the design of the method of connecting the timber members.
Outline notes the timber connections in accordance with Eurocode 5 is provided on webpage Timber connections.

An example calculation with equations relating to most of the topics covered on this page is provided ..Example..

.

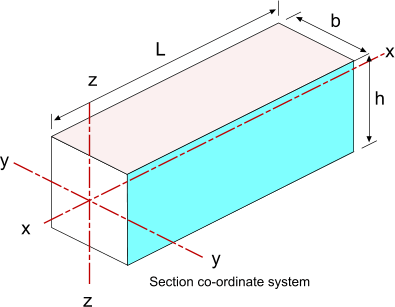

A s = Area of beam b = breadth of beam h = height of beam L = length of member (Eurocode uses ) i = radius of gyration I = Second Moment of Area Wy, Wz Elastic modulus about y-y and z-z repectively. Note for beam below Wy = Iyy /(h/2) and Wz = Izz /(b/2) Bending l = span Md = design moment G = permanent action Q = variable action σm,d = design normal bending stress fm,k = characteristic bending strength fm,d = design bending strength γG = partial coefficient for permanent actions γQ = partial coefficient for variable actions γM = partial factor for material properties,modelling uncertainties and geometric variations kmod = modification factor to strength values, allowing for load duration and moisture content ksys = load sharing factor kinst = instability factor for lateral buckling E0,05 = fifth percentile value of modulus of elasticity Emean = mean value of modulus of elasticity (parallel) to grain DEFLECTION: uinst = instantaneous deformation uinst,G = instantaneous deformation due to a permanent action G uinst,Q,1 = instantaneous deformation for the leading variable action Q1

ufin = final deformation ufin,G = final deformation due to a permanent action G ufin,Q,1 = final deformation for the leading variable action Q1 kdef = deformation factor wcreep = creep deflection wc = camber deflection winst = instantaneous deflection wnet,fin = net final deflection wfin = final deflection um = bending deflection uv = shear deflection BEARING: F90,d = design bearing force L = length of bearing σc,90,d = design compression stress perpendicular to grain fc,90,k = characteristic compression strength perpendicular to grain fc,90,d = design compression strength perpendicular to grain COMPRESSION: L ef effective length of column λy, λz slenderness ratios about y–y and z–z axes λrel,y, λrel,z = relative slenderness ratios about y–y and z–z axes N = design axial force σc,0,d = design compression stress parallel to grain fc,0,k = characteristic compression strength parallel to grain fc,0,d = design compression strength parallel to grain σm,y,σm,z,d = design bending stresses parallel to grain fm,y,d, fm,z,d = design bending strengths parallel to grain kc compression factor

Important Note; This table is equivalent to the table found in BS 5628         Timber Design    however the strength values in this table are characteristic strengths ( fifth percentile values derived directly from laboratory tests of five minutes ) whereas the equivalent values in the BS 5628 table are grade stresses which have been reduced for long-term duration and already include a safety factor.

The characteristic value for strength as shown in the above table is based a reference depth in bending and width in tension iof 150mm.    For timber with a depth in bending, or width in tension, less than 150mm the strength is increased in value by a factor k_h which is obtained from the equation

Note: h = the beam depth in bending and the beam width in tension

Geometrical properties of sawn softwoods

Based on timber with a 20% moisture content

The principle involved when considering a limit state of rupture or excessive deformation of a section or connection (STR ) is it shall be verified that :

E_d ≤ R_d

E_d = The design value of the effect of actions such as internal force , moment or vectorial representation of several internal forces or moments.
R_d = The design value of the corresponding resistance.

In simple English : the value of the product or the maximum expected forces or moments on a section and the associated partial margins should be less than the characteristic value of the strength of the sections divided by the relevant material partial safety margins.

Notes on the actions and their associated partial margins are found on this page and notes on the Resistance values the associated partial margins are found on the web pages related to the construction materials

Serviceability Limit state(SLS) is the design state such that the structure remains functional for its intended use subject to routine loading.    This affects such situations as doors / windows failing to open due to structural deformation.    It relates to factors others than the building strength that renders the buildings unusable.    Serviceability limit state design of structures includes consideration of durability, overall stability, fire resistance, deflection, cracking and excessive vibration.  This website only considers this limit state in outline.

Verification for serviceability limit states in the ground or structional section or interface shall be such that

E_d =< C_d

C_d = Nominal value or function of certain design properties of materials- (related to serviceability limit state )

In the notes below the sections on deflection and vibration relate to this limit state condition

The characteristic strengths, X_k, are converted to design values, X_d, by dividing by a partial factor, γ_M and multiplying by a factor k_mod.

Values for these factors are included in the tables below.

Note: γ_M is not simply a partial factor for materials but also takes account of modelling and geometric uncertainties.

k_mod = modification factor to strength values, allowing for load duration and moisture content

The eurocode , like BS 5268, allows the design strength determined using equation this be multiplied by a number of other factors as appropriate such as k_crit , k_v , k_c,90 and the loading sharing factor, k_sys,where several equally spaced similar members are able to resist a common load.     Typical members which fall into this category may include joists in flat roofs or floors with a maximum span of 6m and wall studs with a maximum height of 4m

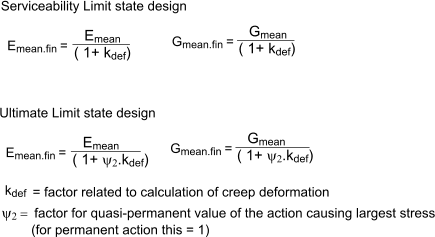

The design values for the stiffness are obtained as follows

E_d = E_mean / γ_M
G_d = G_mean / γ_M

Table for partial factor γ_M

table for k_mod
This is applicable to solid timber , Glued laminated timber, LVL , and Plywood

examples of loading duration assignment are provided below

System strength
When the design loads are carried by several equally spaced and similar members which are connected laterally by a continuous load distribution system, the member strength properties may be multiplied by a system strength factor k_sysof 1,1

Moisture has a significant effect on the mechanical properties of timber and the British standard allocates service class designations to allow for this

The permissible stresses used is generally alocated relevant to the service classes as identified below.    This is the same for Eurocode 5 as for BS 5268.

Service classes ( based on clause 2.3.1.3, BS EN 1995 )

a) Service class 1 is characterized by a moisture content in the materials corresponding to a temperature of 20 °C and the relative humidity of the surrounding air only exceeding 65 % for a few weeks per year.    In such moisture conditions most timber will attain an average moisture content not exceeding 12 %.

b) Service class 2 is characterized by a moisture content in the materials corresponding to a temperature of 20 °C and the relative humidity of the surrounding air only exceeding 85 % for a few weeks per year.     In such moisture conditions most timber will attain an average moisture content not exceeding 20 %.

c) Service class 3, due to climatic conditions, is characterized by higher moisture contents than service class 2.

Note: Design using timber sections greater than 100 thick or deep are generally based on service class 3 because of the difficulty in drying thicker sections.

The design value of a resistance ( load carrying capacity ) ,R_d , is calculated as

R_k = characteristic load carrying capacity
γ_M = the partial factor for a material property
k_mod = modification factor taking into account the effect of load duration and moisture content

The actions on a structure or a structural element comprise of permanent actions which are in principle unchanging through the life of the structure and variable actions which are not fixed.  The prime example of a permanent action is the weight of the construction materials. Examples of variable actions include wind loading, occupancy loading, storage loading.

As noted on the webpage Eurocodes Introduction, the design value of an action (F_d) is obtained by multiplying the representative value (F_rep) by the appropriate partial safety factor for actions (γ_f):

F_d = γ_f.F_rep

where
F _rep is the representative value of an action. This is generally equal to the characteristic F _k value of an permanent action or the leading variable action value , or it is equal to the ψ. F _k of an imposed ( variable action ).
γ _F is the partial factor for an action ( or γ _E , for the effect of an action ).

..F_k = G_k    and       γ _F = γ _G for a permament action.
..F_k = Q_k     and     γ _F = γ _Q for an imposed action.

The general equation for the effect of actions should be

The part of the equation inside the brackets represents the combination of permanent and variable actions

In BS EN 1990 one of a number of equations for action (load ) combinations is equation 6,10

This is a quick, but conservative, method when compared to the alternative equations (  6.10a and 6.10b  )which are a little more complicated. 6.10b is generally the governing equation in the UK

Note: Basic information on columns and struts and the derivation of the buckling equations if found at Struts
The slenderness ratio is simply defined as the

λ = Length ( Effective Length = L_e) / radius of Gyration = k.

The relative slenderness ratios are obtained from

Where both λ_rel,z and λ_rel,y ≤ 0,3 the stress should satisfy the conditions for combined bending and compression as identified below.    In all other cases the stress which should increase resulting from deflection should satisfy the following expressions.

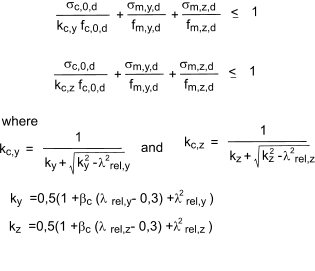

for timber memebers ubject to combined bending and axial compression the following condiions should be satisfied

The design of flexural members principally involves consideration of the following actions which are discussed next:

1. Bending
2. Lateral buckling
3. Shear
4. Bearing
5. Torsion
6. Deflection
7. Vibration

BENDING

If members are not to fail in bending, the following conditions should be satisfied:

σ_m,y,d and σ_m,z,d = the design bending stresses and about axes y–y and z–z
f_m,y,d and f_m,z,d = the corresponding design bending strengths
k_m = a factor that allows for the redistribution of secondary bending stresses and assumes the following values:
– for rectangular or square sections; km = 0.7
– for other cross-sections; km = 1.0

As an example for a rectangular section beam of width b and height h

M_y,d = Bending moment about y-y
W_y = elastic modulus about y-y = Iyy /( h/2)

Lateral Buckling

A beam is not be at risk of buckling under axial compressive loading if lateral displacement and rotation is prevented along its length along its length.    Otherwise the member may be vulnerable to lateral buckling and the rules in provide in BS EN 1995-1-1 should be used to assess the bending behaviour. Generally, the following condition should be verified

σ_m,d design bending stress
f_m,d design bending strength
k_crit is a factor which takes into account the reduction in bending strength due to lateral buckling and is given by
    k_crit = 1 for λ_rel,m = < 0.75
    k_crit = 1.56 - 0.75 . λ_rel,m for 0.75 < λ_rel,m = < 1.4
    kcrit = 1 / λ_rel,m² for 1.4  <   λ_rel,m
where <   λ_rel,m is the relative slenderness ratio for bending given by

where f_m,k is the characteristic bending stress
σ_m,crit is the critical bending stress generally

Note: for softwoods with solid rectangular sections the following can be assumed

where
L_ef = the effective length of the beam, reference table below.
b = width of beam
h = depth of beam
I_z = the second moment of area about z-z
I_tor = the torsional moment of inertia
f_m,k = characteristic bending strength
E_0,05 = the fifth percentile modulus of elasticity parallel to grain
G_0,05 = the fifth percentile shear modulus = E_0,mean/16
W_y = Elastic modulus about y-y.

Note; table only applies if compression load is on centre of gravity of section on torsionally restrained beams.

SHEAR

Reference Shear stress

For shear with a stress component parallel to the grain as well as for shear with both components perpendicular to the grain.    If flexural members are not to fail in shear, the following condition should be satisfied:

τ _d < = f_v,d

where
τ _d is the design shear stress
f_v,d is the design shear strength

For a beam with a rectangular cross-section, the design shear stress occurs at the neutral axis and is given by:

where
V_Ed = the design shear force
A = the cross-sectional area

The design shear strength, f_v,d is given by

where
f_v,k = the characteristic shear strength

Note: The shear strength for rolling shear is approximately twice the tensile strength perpendicular to the grain.

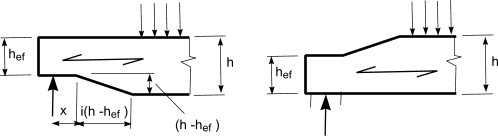

For beams notched at their ends as shown in figure below the following condition should be checked

k_v is the shear factor which may attain the following values:

For beams notched at the opposite side to support

k_v = 1

For beams of solid timber notched at the same side as support

where
k_n = 5 for solid timber , = 4,5 for LVL, = 6,5 for glued laminated timber
i = the notched inclination as defined in figure
h = s the beam depth in mm
x = the distance from line of action to the corner

BEAMS SUBJECT TO LATERAL COMPRESSION

For compression perpendicular to the grain the following condition should be satisfied:

σ_c,90,d   <=   k_c,90 f_c,90,d

where
σ_c,90,d = the design compressive stress perpendicular to grain
f_c,90,d = the design compressive strength perpendicular to grain
k_c,90 = the compressive strength factor allowing for load configuration/ risk of splitting/degree of compressive deformation

where
F_c,90,d = the design compressive load perpendicular to grain
A_ef = Effective contact area in compression perpendicular to grain

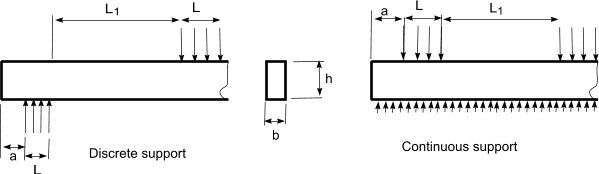

The effective contact area, A_ef , is determined using an effective length based on the actual contact length at each side which is increased by 30mm but not more than a₁, L or L₁/2 (refer to figure above )

k_c,90 should be taken as 1 unless the conditions below apply.

For beams on continuous supports and providing L₁ >= 2h then
k_c,90 = 1,25 for solid softwood timber
k_c,90 = 1,5 for glued laminated timber

For beams on discrete supports and providing L₁ >= 2h then
k_c,90 = 1,5 for solid softwood timber
k_c,90 = 1,75 for glued laminated timber providing L <= 400mm

TORSION

For beams subject to torsion the following expression shall be satisfied

where
k_shape = 1,2 for circular sections
k_shape = The lesser of
            1+0,15.h/b or
            2,0
for rectangular sections.

τ _tor,d = design torsional stress;
f_v,d = design shear strength;
k_shape = factor depending on shape of cross-section;
h = larger cross section demensions
b = smaller cross section dimension

DEFLECTION

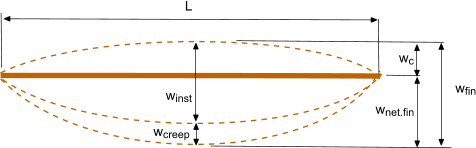

BS EN 1995 recommends various limiting values of deflection for beams.    The symbols relating to the deflection are shown in figure below.. I am using L not l to avoid it looking like number 1.

Note: Deflection and and vibration are generally most relevant for Design to serviceability limit states..

w_creep = creep deflection
w_c = camber deflection
w_inst = instantaneous deflection
w_net,fin = is the net final deflection due to permanent and variable actions = w_fin - wc
w_fin = final deflection due to permanent and variable actions = w_inst + w_creep
u_m = bending deflection
u_v = shear deflection

Examples of limiting values of defelection based on BS EN1995-1-1 table 7,2

Specific limiting values for deflections of beams ( based on Table 4 of NA to EN 1995)

Eurocode 5 includes consideration for the load duration and moisture influences on deformations having time-dependent properties i.e creep.  The final mean modulus of elasticity and shear modulus used to calculate deflections are obtained using the following equations.

table for k_def

VIBRATION

BS EN 1995 includes a requirement for the serviceability limit state design that the actions on a member or a structure do not result in vibration levels which are are not acceptable for functional and occupier comfort and safety levels.    The notes below identify the requirements for an acceptable level of imposed structural vibration.

The fundamental frequency of vibration of a rectangular residential floor, f₁, is estimated using the following eqaution and should normally exceed 8 Hz.

m = mass equal to the self weight of the floor and other permanent actions per unit area in kg m^-2
L = floor span in m
(EI)_L = equivalent bending stiffness in the beam direction N.m² / m.

For cases when the fundemental frequency of the floor exceeds 8 Hz the following additional requirements are imposed by the code.

ξ = modal damping coefficient, normally taken as 0.02
ω = maximum vertical deflection caused by a concentrated static force F = 1.0
ν = unit impulse velocity

a = is the deflection of floor under a 1 kN point load .

a must not exceed 1,8mm for L <= 4 000mm
a must not exceed 16 500/ L ^1,1 mm for L > 4 000mm

b = is the velocity response constant .

b = 180 - 60.a if a <= 1mm
b = 160 - 40.a if a > 1mm

ω may be estimated from the equation< below

k_dist is the proportion of point load acting on a single joist
l_eq is the equivalent floor span in mm
k_amp is the amplification factor to account for shear deflection in the case of solid timber
(EI)_joist is the bending stiffness of a joist in N.mm² (calculated using E_mean)

k_strut = 0.97 for appropriately installed single or multiple lines of strutting, or otherwise 1.0
(EI)_b is the floor flexural rigidity perpendicular to the joists in N mm² / m
s is the joist spacing in mm
L_eq is the span, in mm, for simply supported single span joists
k_amp 1.05 for simply supported solid timber joists
The value of ν may be estimated from

b is the floor width in m
L is the floor length in m
n₄₀ is the number of first order modes with natural frequencies below 40 Hz and is given by

where (EI)_L is the equivalent plate bending stiffness parallel to the beams and the other symbols are as defined above.
