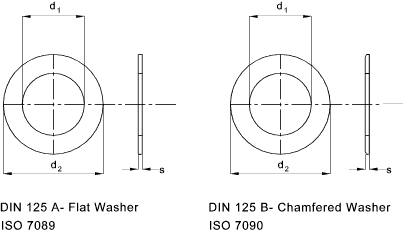

Din 125 Washer Dimensions



d1 Screw Size d2 s

1,1 M1 3 0,3
1,3 M1,2 3,5 0,3
1,5 M1,4 4 0,3
1,7 M1,6 4 0,3
1,8 M1,7 4,5 0,3
2,2 M2 5 0,3
2,7 M2,5 6 0,5
2,8 M2,6 7 0,5
3,2 M3 7 0,5
3,7 M3,5 8 0,5
4,3 M4 9 0,8
5,3 M5 10 1,0
6,4 M6 12 1,6
7,4 M7 14 1,6
8,4 M8 16 1,6
10,5 M10 20 2
13 M12 24 2,5
15 M14 28 2,5
17 M16 30 3
19 M18 34 3
21 M20 37 3
d1 Screw Size d2 s

23 M22 39 3
25 M24 44 4
28 M27 50 4
31 M30 56 4
34 M33 60 5
37 M36 66 5
40 M39 72 6
43 M42 78 7
46 M45 85 7
50 M48 92 8
54 M52 98 8
58 M56 105 9
62 M60 110 9
66 M64 115 9
70 M68 120 10
74 M72 125 10
78 M76 135 10
82 M80 140 12
87 M85 145 12
93 M90 160 12
104 M100 175 14


Useful Links
  1. DIn 125 Plain Washers..Conex Metals (Supplier ) -Washer Dimensions -
