There are four basic types of bevel gears.

BS 545:1982..Specification for bevel gears (machine cut)..(Obsolescent)
BS ISO 10300-1:2001..Calculation of load capacity of bevel gears. Calculation of load capacity of bevel gears. Introduction and general influence factors
BS ISO 10300-2:2001..Calculation of load capacity of bevel gears. Calculation of surface durability (pitting)
BS ISO 10300-3:2001..Calculation of load capacity of bevel gears. Calculation of tooth root strength

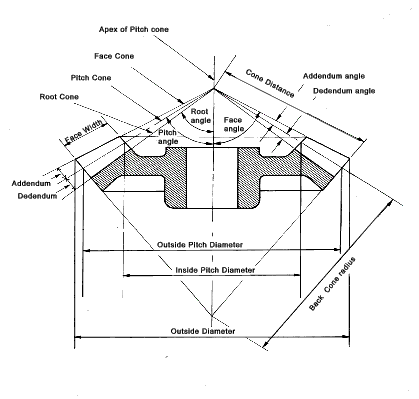

These are gears cut from conical blanks and connect intersecting shaft axes.  The connecting shafts are generally at 90^o and sometimes one shaft drives a bevel gear which is mounted on a through shaft resulting in two output shafts.    The point of intersection of the shafts is called the apex and the teeth of the two gears converge at the apex.   The design of bevel gears results in thrust forces away from the apex.   With the bearing limitations the gears have to be carefully designed to ensure that they are not thrown out of alignment as they are loaded.

Straight bevel gears are used widely in machine drive systems to effect 90^o direction changes. and in differential drives    They have the same limitations as spur gears and they are therefore not used on high duty high speed applications.  Straight bevel gears are low cost units supplied with ratios from 1:2 to 4:1.

z _p = Number of teeth on pinion
z _g = Number of teeth on pinion
α = Pressure Angle of Teeth.
ε _p = Pitch Angle (pinion)....= tan^-1 (z _p / z _g )
ε _g = Pitch Angle (gear)....= tan^-1 (z _g / z _p )

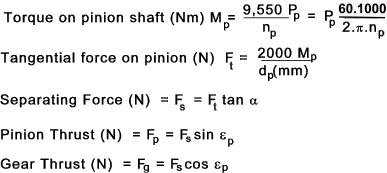

P _p = Power at Pinion shaft (kW)
n _p = Rotational speed of pinion shaft (revs/min)
d _p = Pinion Pitch Circle diameter (mm)
M_p = torque on pinion shaft (Nm)

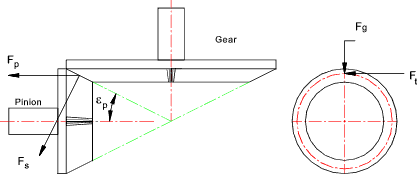

F_s = Separating Force (N)
F_p = Pinion Thrust (N)
F_g = Gear Thrust (N)

The advantage of Zerol bevel gears compared to straight bevel gears is that they operate with a smooth localised point contact as opposed to a line contact enabling smoother operation with low vibration levels and higher speeds.  Because there is no spiral angle and no additional developed thrust these gears can be used as direct replacements for straight bevel gears.   These gears normally have a pressure angle of 20 ^o.  The minimum number of teeth on the pinion is 14.  The design of Zerol gears is relatively specialised and they are manufactured using special "Gleason" machine tools..

These are produced using a spiral gear form which results in a smoother drive suitable for higher speed higher loaded applications.  Again satisfactory performance of this type of gear is largely dependent upon the rigidity of the bearings and mountings.

α _n = Normal Pressure angle..
ε = pitch cone angle
γ = Helix angle

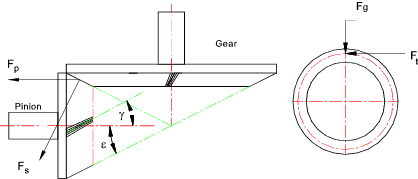

Pinion Thrust F _p = F _t [ (tan α _n sin ε / cos γ ) ± tan g cos ε ]

Note: ( + ) if helix angle is as shown and ( -) if helix angle is opposite to that shown

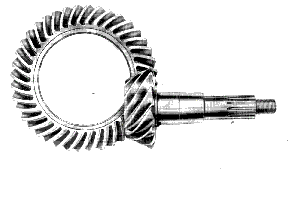

Hypoid gears are best for the applications requiring large speed reductions with non intersecting shafts and those applications requiring smooth and quiet operation.  Hypoid gears are generally used for automotive applications.  The minimum number of teeth for speed ratios greater than 6 :1 is eight although 6 teeth pinions can be used for ratios below 6:1.   Hypoid gears have pressure angles between 19 and 22^o.    The design of hypoid gears is relatively specialised and they are manufactured using special "Gleason" machine tools..

Designing bevel gears is normally done in accordance with standards as listed under specifications above: The notes below relate to approximate methods for estimating gear strengths.   The methods are really only useful for first approximations and/or selection of stock gears (ref links below). — Detailed design of bevel gears should only be completed using the relevant standards.   Books are available providing the necessary guidance.   Software is also available making the process very easy.


The equations are basically modified spur gears equations using a spur gear equivalent number of teeth z _e

Equivalent Number of teeth on gear = z _eg = z _g / cos ε _g
Equivalent Number of teeth on pinion = z _ep = z _p / cos ε _p

The basic lewis formula for spur gear teeth is shown as follows

s = F _t / ( W. m. Y )

The Lewis formula is modified to provide the allowable tangential force F _b based on the allowable bending Stress S _b

F _a = S _b.W. m. Y

It is clear that a bevel gear does not have a uniform section or a uniform module and therefore it is necessary to start an analysis by considering an element dx..

The Lewis formula applied to the element is as follows

To obtain the allowable torque (M) transmitted by the gears multiply both sides by r _xand integrate the resulting equations as shown below

The module varies along the gear teeth in proportion to the radius from the apex along the pitch cone.
Thus ..m / m _x = L / x where m = module at x = L

A similar relationship holds for for r _x. i.e for r _x /r = x /L
Substituting these relationships into the integration equation results..

d _x varies from x = (L -b) to x = L the integration can be solved as follows:

The face width is considered to be limited to 1/3 of the cone distance when the factor b² / (3.L²) = 1/27 is so small compared to the other factors that it can be reasonably ignored .    Then dividing by r to arrive at the Lewis equation for the allowable bending load

The allowable bending load F _b must be greater than the dynamic load which is the actual bending load calculated from the transmitted torque modified by the Barth formula as identified in the notes on spur gears i.e

F _b ³ F _t / K _v

K _v is given by the Barth equation for milled profile gears.

K _v = 6,1 / (6,1 +V )

Note: This factor is different for different gear conditions i.e K _v = ( 3.05 + V )/3.05 for cast iron, cast profile gears.

V =Average velocity of gear face = 0.0000524.n.d _mean
d _mean is the mean pitch circle diameter (mm)..
n = Rotational speed of gear (rpm)

The gear durability equation is based on the Hertz contact stress equation and its application to gears.
The allowable tangential wear load F _w is calculated as follows

F _w = d _p. K. Q^' / cos ε _p

d _p = Pitch diameter measured at the back of tooth
Q^' = 2 z _eg /( z _ep + z _ep )
z _eg & z _ep are the equivalent number of teeth on the gear and pinion as defined above
K = Wear Load Factor see table Gear table

The allowable load F _w must be greater than the dynamic bending load which is the actual load calculated from the transmitted torque modified by the Barth formula as identified in the notes on spur gears i.e

F _w ³ F _t / K _v
