Drawing Notes

The notes below are representative. The actual notes used will be selected based on the information being shown on the drawing

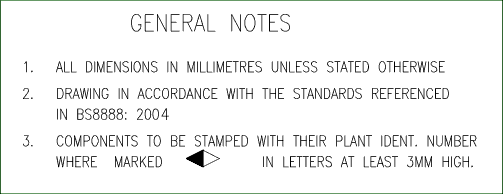

General Notes

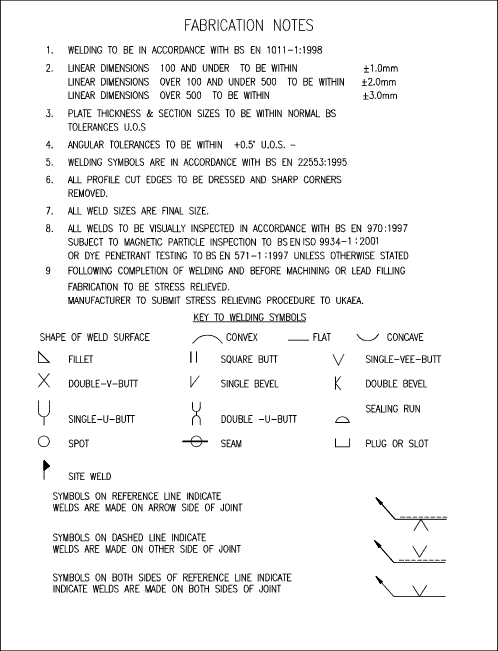

Fabrication Notes

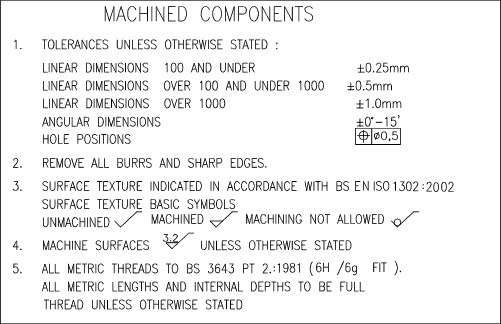

Machining Notes

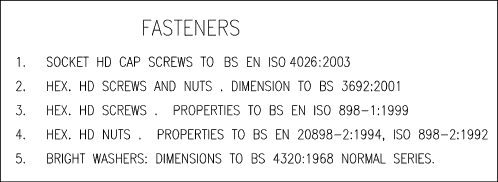

Fastener Notes


Links Providing information on Welding Symbols on Drawing
  1. Volvo Drawing Standards......For access to document 101-0005 on European-Standard-based drawing procedures
  2. Volvo Weld Symbols/Procedures.....For access to document 180-0001 on European-Standard-based Weld Symbols
  3. Engineering Drawing and CAD-Plymouth Uni...A very comprehensive site Excellent source of basic draughting information
