Rolling Bearings
Rolling bearings can be shown as detailed views with the housings hatched in the sections. These view would be similar to the views indicated in the bearing catalogues. The standards also allow the bearings to be shown in a simplified way. Some typical illustrations are shown below. .

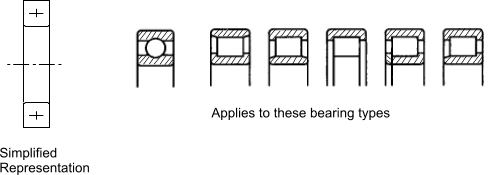

Single Row Ball and Roller bearings

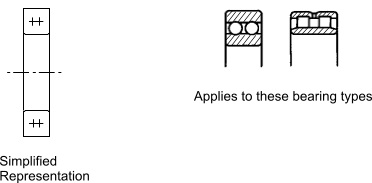

Double Row Ball and Roller bearings

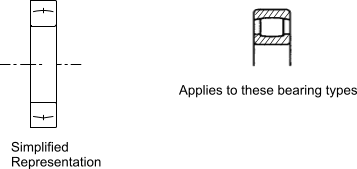

Single Row Spherical bearings

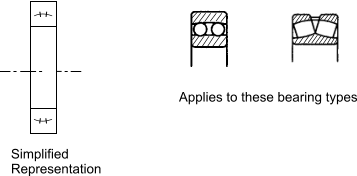

Double Row Spherical bearings

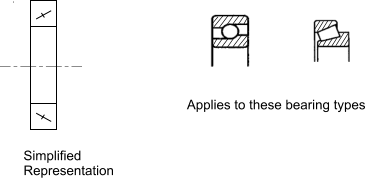

Anglular Contact Ball Bearings & Taper roller Bearings

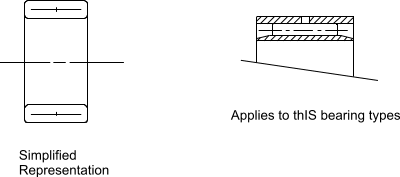

Needle Bearing single row

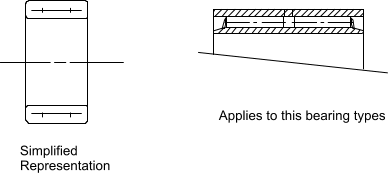

Needle Bearing double row

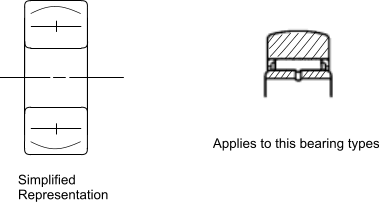

Self- Aligning Needle Bearing singel row

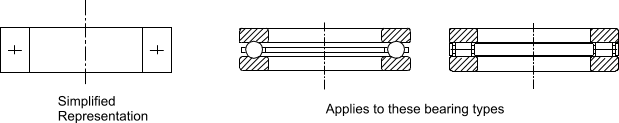

Axial/Thrust Bearings

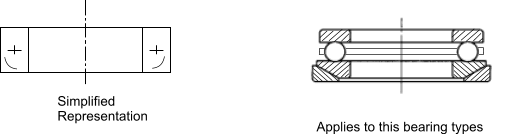

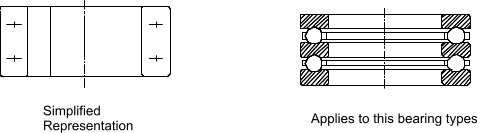

Axial/Thrust Bearings (Two rows)
Axial/Thrust Bearings with Spherical ring
